Lightning Protection Fittings

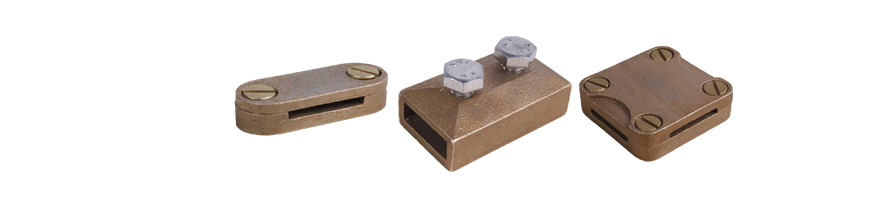

D.C.Tape Clip

DC Clips are used to hold or pin the copper down conductor and earth conductors onto the wall structure of the building. The DC Clip is fitted onto the wall while the copper tape passes through the clip. The screws of the clip are tightened to hold the tape securely. DC Clips are made of gunmetal or brass.

SIZE	MATERIAL	PART NO
25 X 3mm	Gunmetal	EXDC-253
25 x 6mm	Gunmetal	EXDC-256
31 x 3mm	Gunmetal	EXDC-313
31 x 6mm	Gunmetal	EXDC-316
50 x 3mm	Gunmetal	EXDC-503
50 x 6mm	Gunmetal	EXDC-506

Square Tape Clamp

Square Clamps are used to hold or pin the copper down conductor and earth conductors onto the wall structure of the building. The Square Clamp is fitted onto the wall while the copper tape passes through the clip. The screws of the clip are tightened to hold the tape securely. Square clamps are made of gunmetal or brass.

SIZE	MATERIAL	PART NO
25 x 3mm	Gunmetal	EXSTC-253
25 x 6mm	Gunmetal	EXSTC-256
31 x 3mm	Gunmetal	EXSTC-313
50 x 3mm	Gunmetal	EXSTC-503
50 x 6mm	Gunmetal	EXSTC-506

Oblong Test Clamp

Oblong test clamps are used to test the earth continuity of earthing conductors and down conductors in an earthing system. Oblong test clamps are made of gunmetal or brass. The copper tape passes through the clamp, while earth continuity can be checked.

SIZE	MATERIAL	PART NO
26 X 8mm	Gunmetal	EXOTC-268

Heavy Duty Cable Saddle

Cable saddles are used to hold or pin the copper down conductor and earth conductors onto the wall structure of the building. The saddle is fitted onto the wall while the copper circular conductor passes through the clip. The screws of the clip are tightened to hold the conductor securely. Cable Saddles are made of gunmetal or brass.

SIZE	MATERIAL	PART NO
50Sq.mm	Gunmetal	EXHCS-50
70Sq.mm	Gunmetal	EXHCS-70
95Sq.mm	Gunmetal	EXHCS-95

Square Conductor Saddle

Square saddles are used to hold or pin the copper down conductor and earth conductors onto the wall structure of the building. The Square saddle is fitted onto the wall while the copper circular conductor passes through the clip. The screws of the clip are tightened to hold the circular conductor securely. Square conductor saddles are made of gunmetal or brass.

SIZE	MATERIAL	PART NO
50Sq.mm	Gunmetal	EXSCS-50
70Sq.mm	Gunmetal	EXSCS-70
95Sq.mm	Gunmetal	EXSCS-95

Test Clamp

Test clamps are used to test the earth continuity of earthing conductors and down conductors in an earthing system. test clamps are made of gunmetal or brass. The copper circular conductor passes through the clamp, while earth continuity can be checked.

SIZE	MATERIAL	PART NO
50Sq.mm	Gunmetal	EXTC-50
70Sq.mm	Gunmetal	EXTC-70
95Sq.mm	Gunmetal	EXTC-95
