• Pure Copper Earth Rod & Acc.

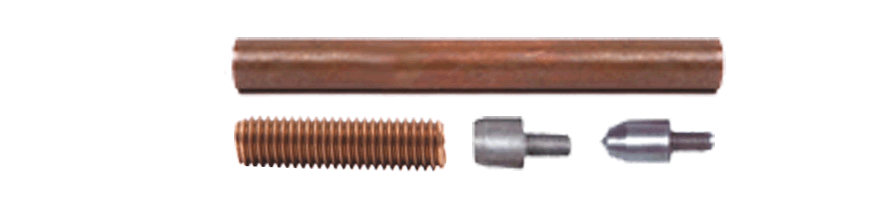

    Pure Copper Earth Rods are made of pure (100%) electrolytic copper. The Earth Rods are hard drawn from extruded copper bars. Pure copper earth rods are preferred where soil conditions are very aggressvive & corrosive. The rods are threaded internally to make it extensible for deep driving with the help of couplers.

    Earthing equipments

    Earth Rod Dia Length Thread Part No.
    15mm 1200mm M10 EXPCER-15-1.2
    15mm 1500mm M10 EXPCER-15-1.5
    15mm 2400mm M10 EXPCER-15-2.4
    16mm 1200mm M10 EXPCER-16-1.2
    16mm 1500mm M10 EXPCER-16-1.5
    16mm 2400mm M10 EXPCER-16-2.4
    20mm 1200mm M10 EXPCER-20-1.2
    20mm 1500mm M10 EXPCER-20-1.5
    20mm 2400mm M10 EXPCER-20-2.4
    * other sizes available on request



  • Coupling Dowel

    Coupling dowel made of brass, stainless steel or gunmetal is a threaded joining devise which joins two earth rods together for extending earth rods in an earthing system

    Tread Dia Length Material Part No.
    M10 40mm Brass XR-CD-10
    coupling_dowel


  • Driving Head

    Driving heads are made of toughened steel and used while hammering an earth rod into ground. Driving head protects the relatively soft earth rod from damage while hammering. Driving heads have no further function in earthing & lightning protection.

    Tread Dia Part No.
    M10 XR-DH-10
    driving_head


  • Driving Spike

    Driving spikes are made of toughened steel and used as a pointed guide while hammering an earth rod into ground. The pointed tip of driving spike pierces the soil so that earth rods are smoothly driven down the ground. Driving spikes have no further function in earthing & lightning protection.

    Tread Dia Part No.
    M10 XR-DS-10
    driving_spikes
